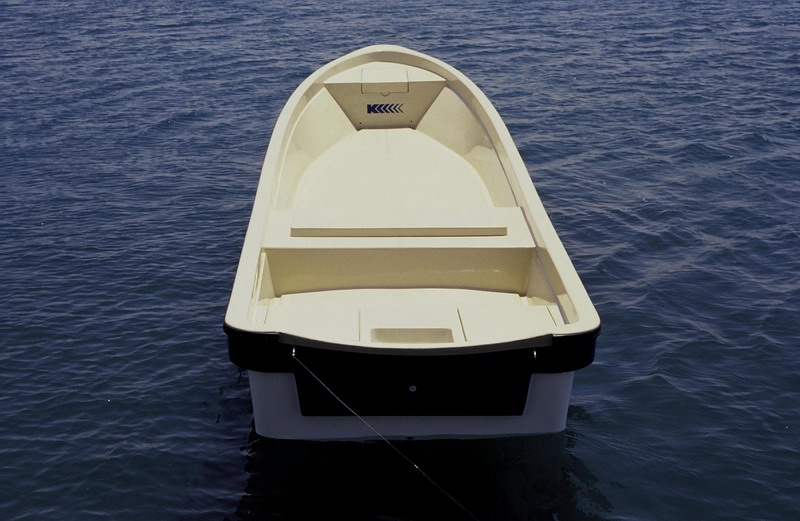

FISHING BOAT - KF-710

DIMENSIONS:

Length   :     7.04    m   (23’ 1”)

Width     :     1.72    m

Depth     :     0.52    m

Height    :     0.88   m.

Weight   :     250    kgs



Assembled in components which as follow:

a-      Hull, Bottom stiffeners, Wood laminated with fiberglass on strake stringers. Two longitudinal girders & across frames molded in one piece filled with polyurethane foam to provide strength and good flotation.

b-     Deck & Floor, A combination of fwd. floor, aft storage & sides molded in one piece.

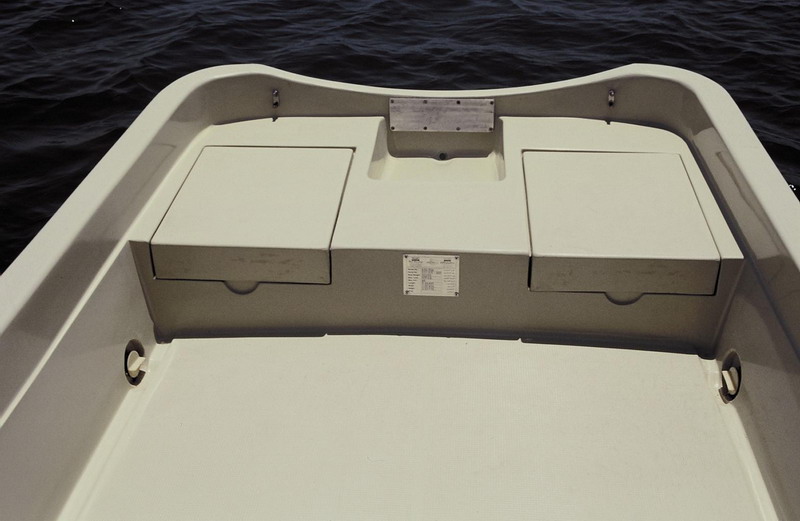

c-      Aft storage with two hatch covers for seating convenience.



STANDARD EQUIPMENT:

1.  Gunwale rubber

2.  S/Steel U – bolts, 1 large size at front and 2 medium size at transom

3.  Side drain scupper.

4.  Bottom drain plug.

5.  Motor well drain tube.



OPTIONAL EQUIPMENT:

1. Top shading canopy (Knock out style)  3 pipe frames Dia. 22.mm

2. Cleats – 5

3. Live well.

4. Compact Console.
